RC Channel OP90105-F Hot Shot II/Boomerang Front Single Damper Set

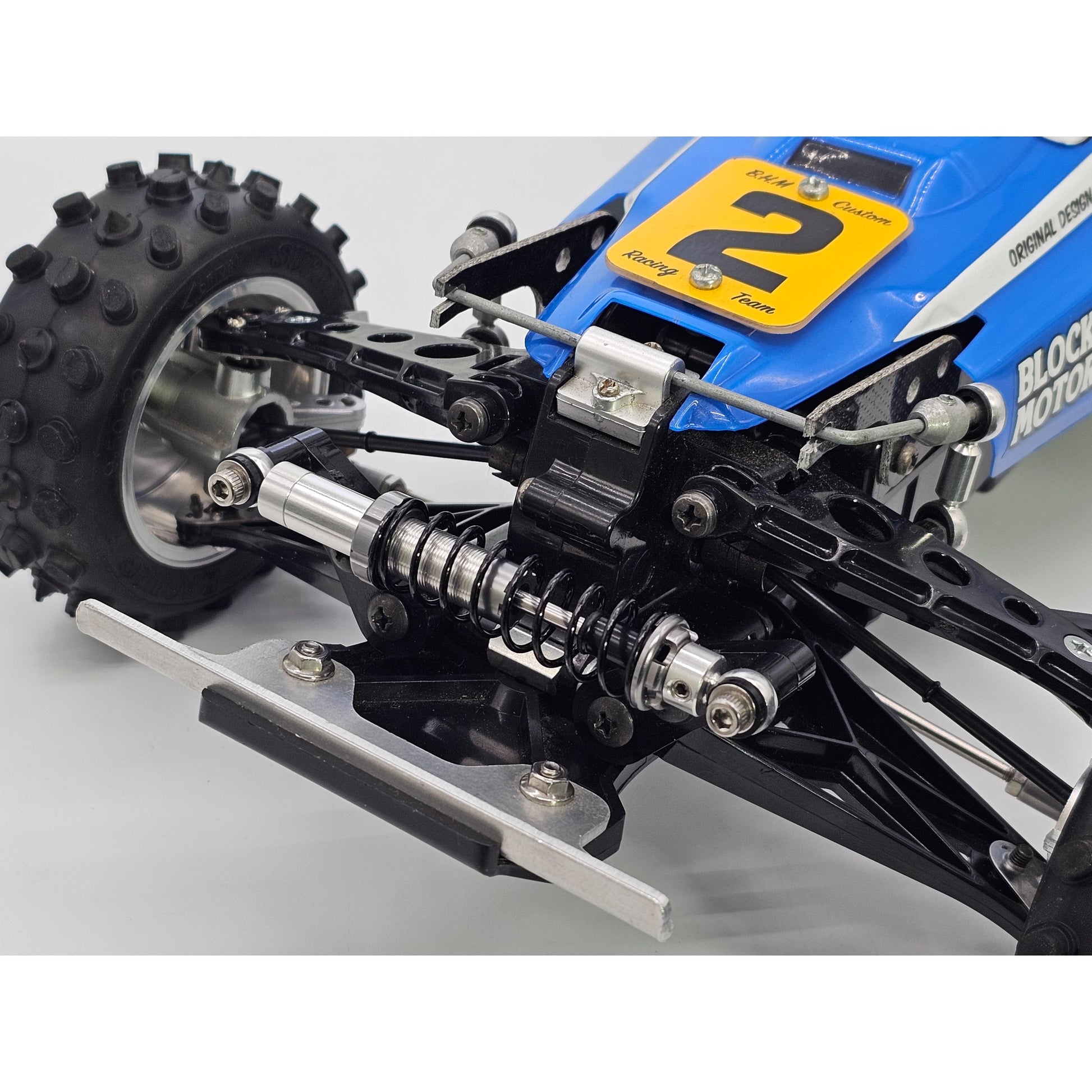

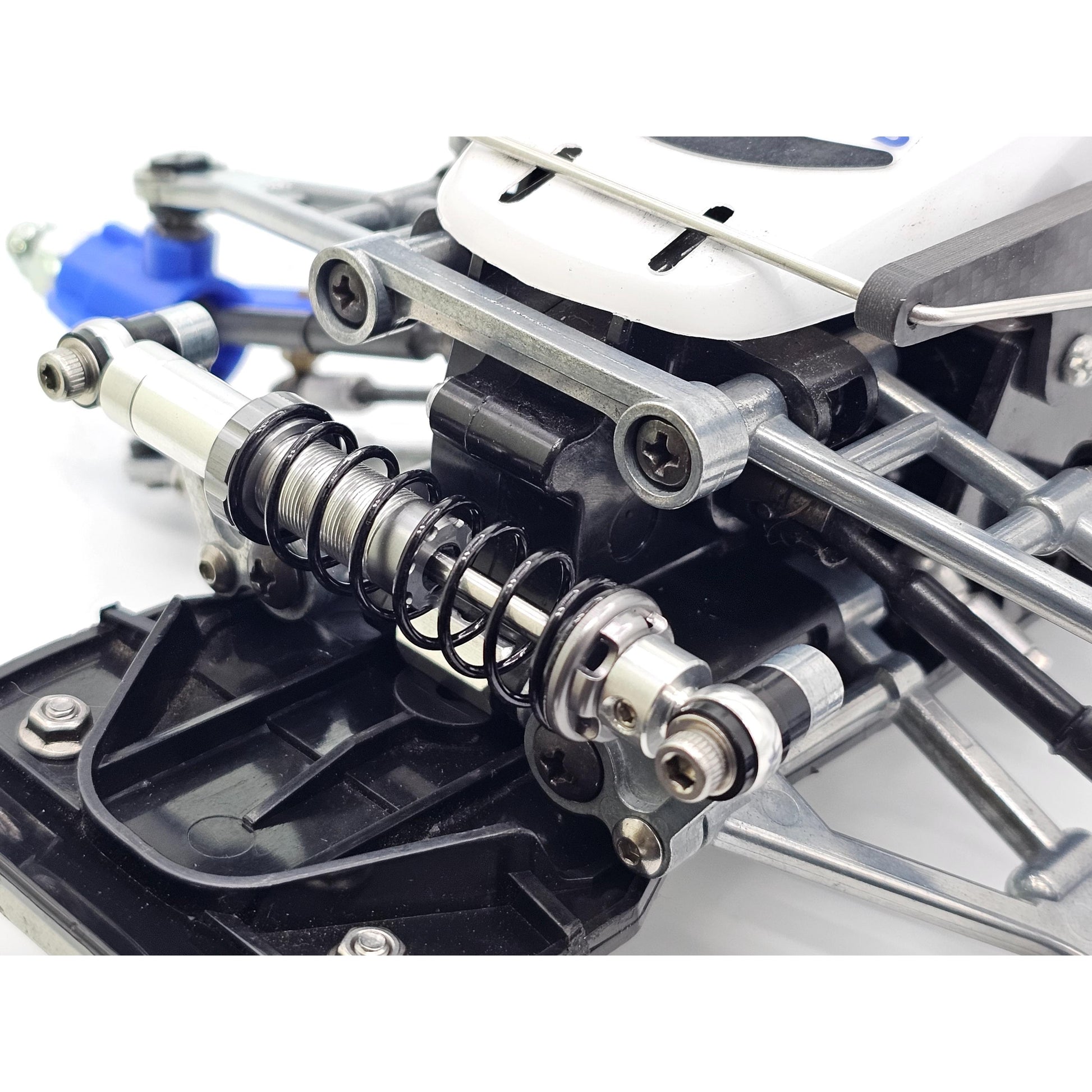

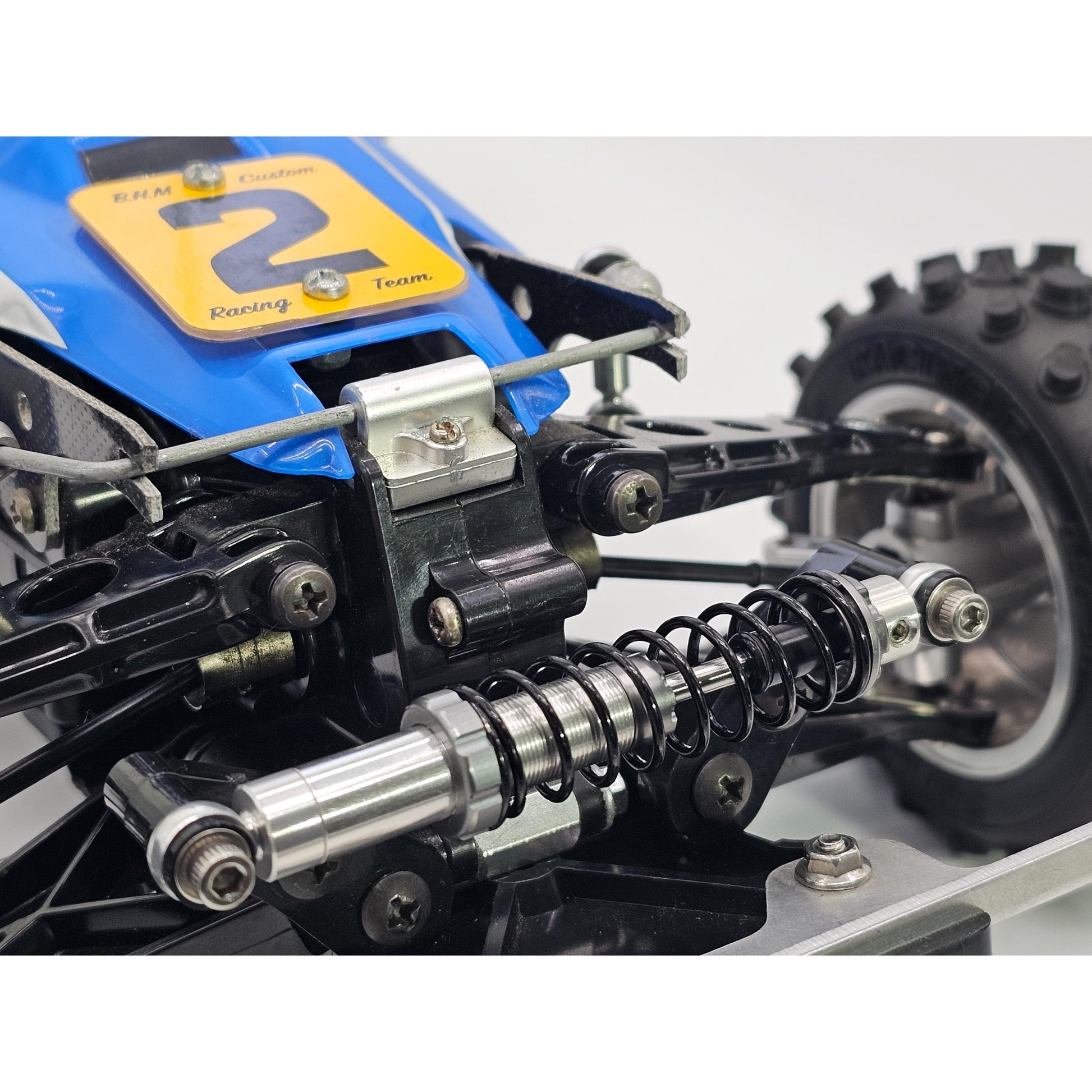

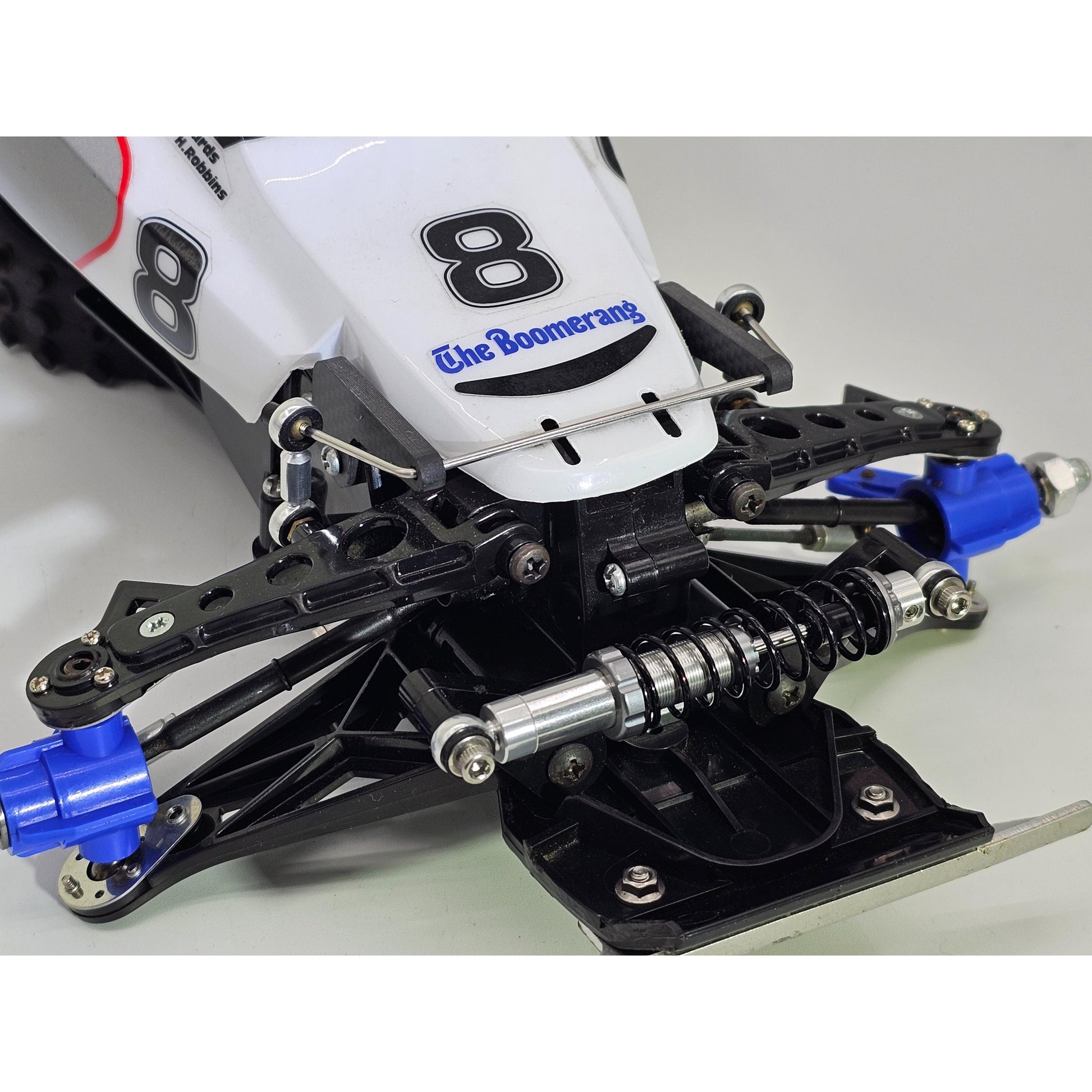

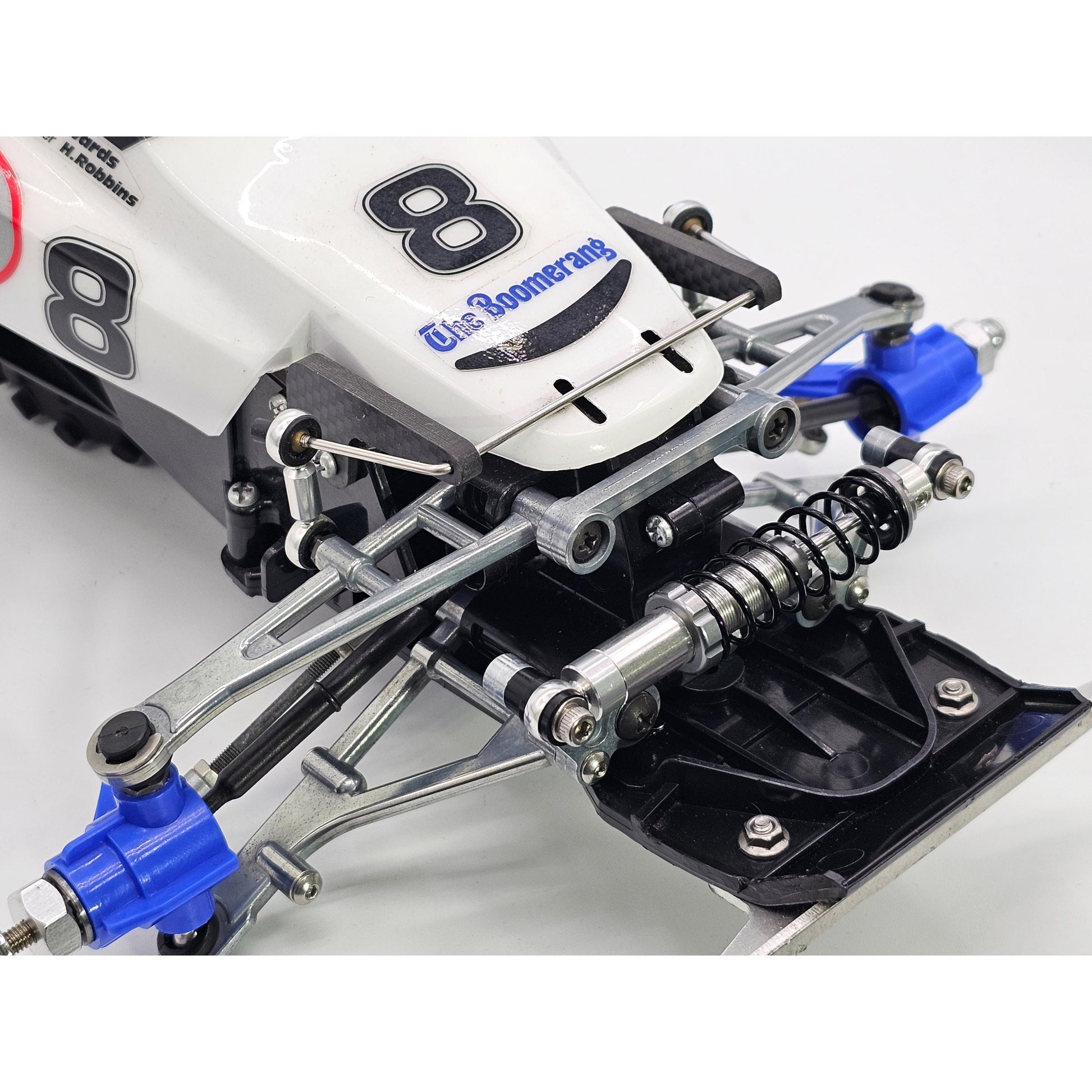

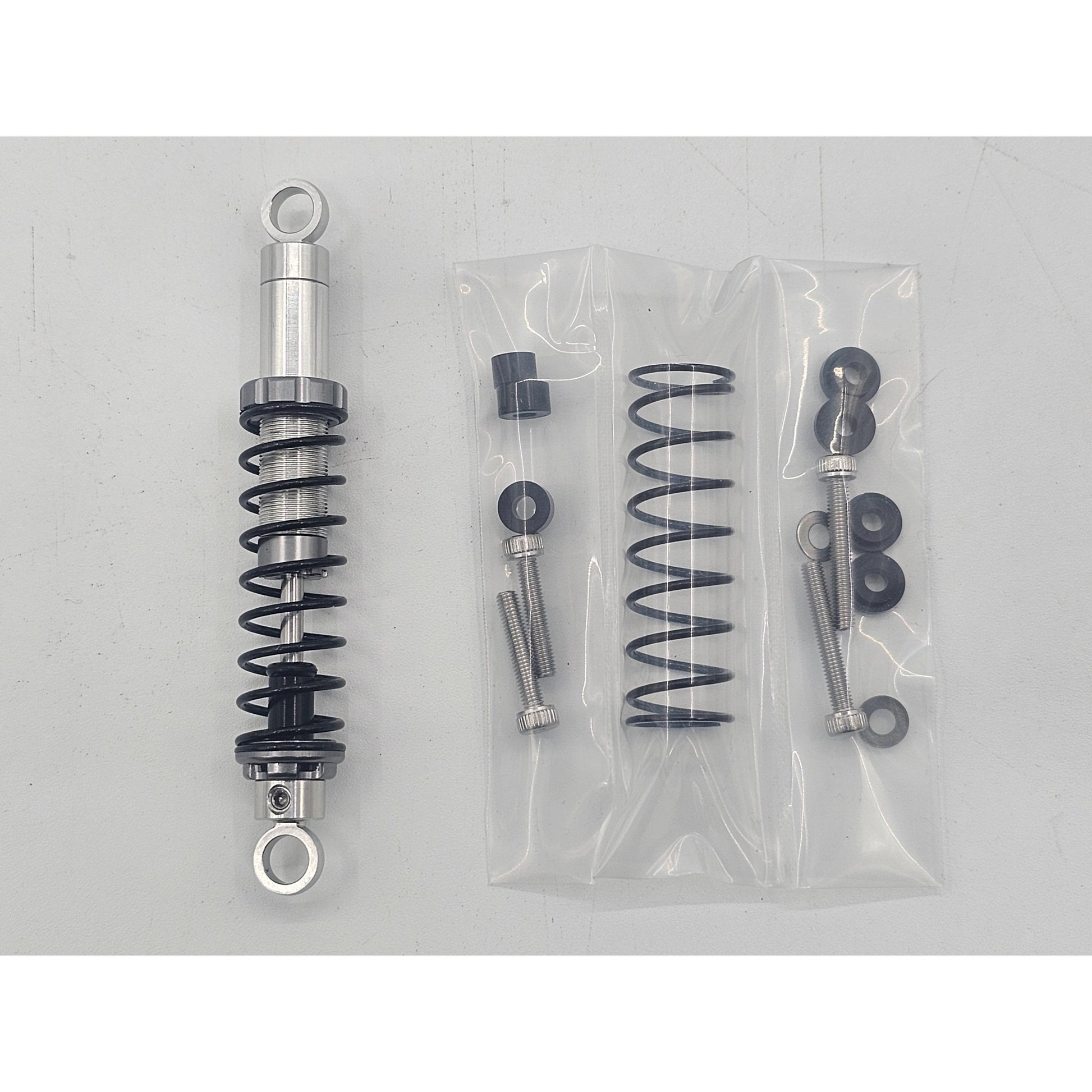

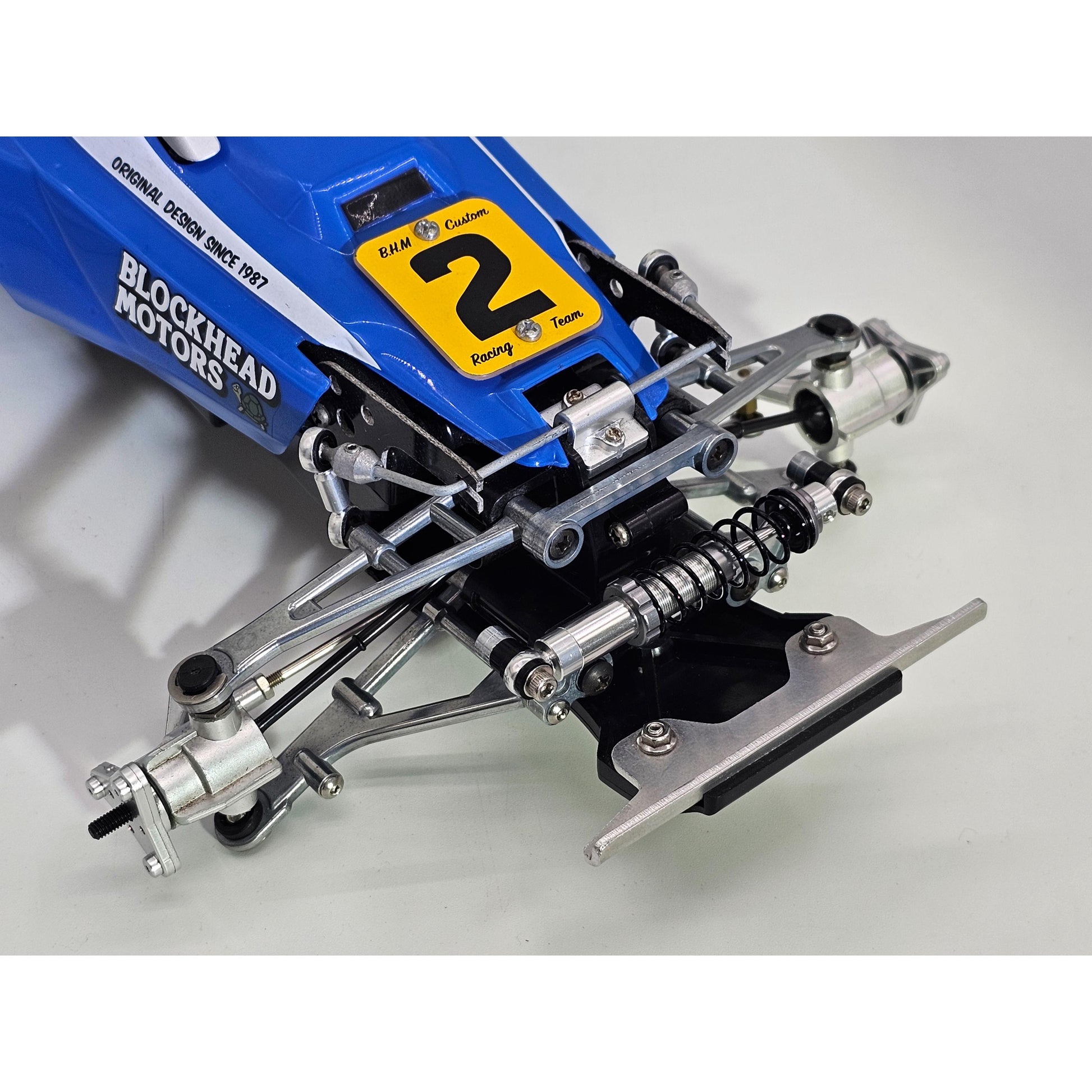

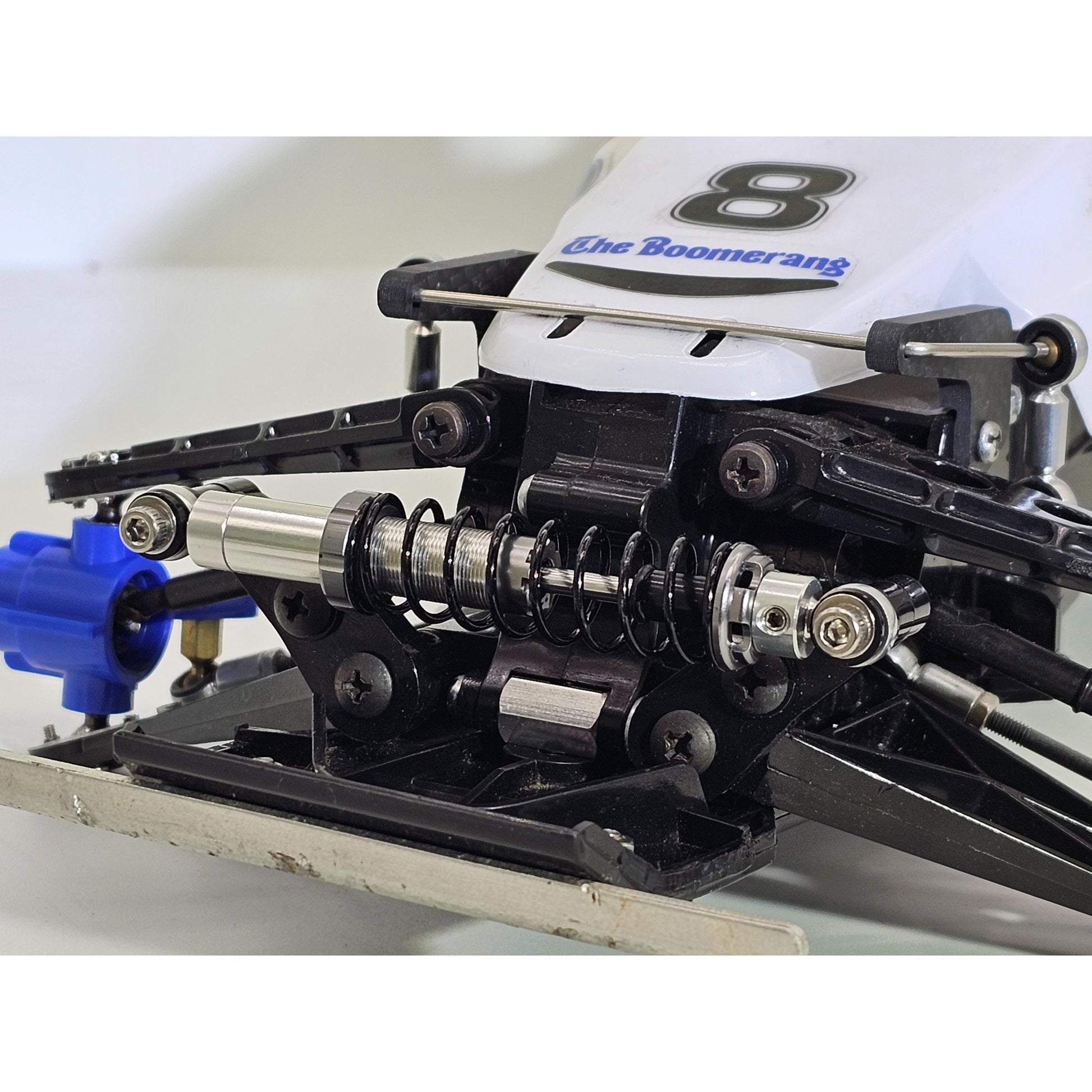

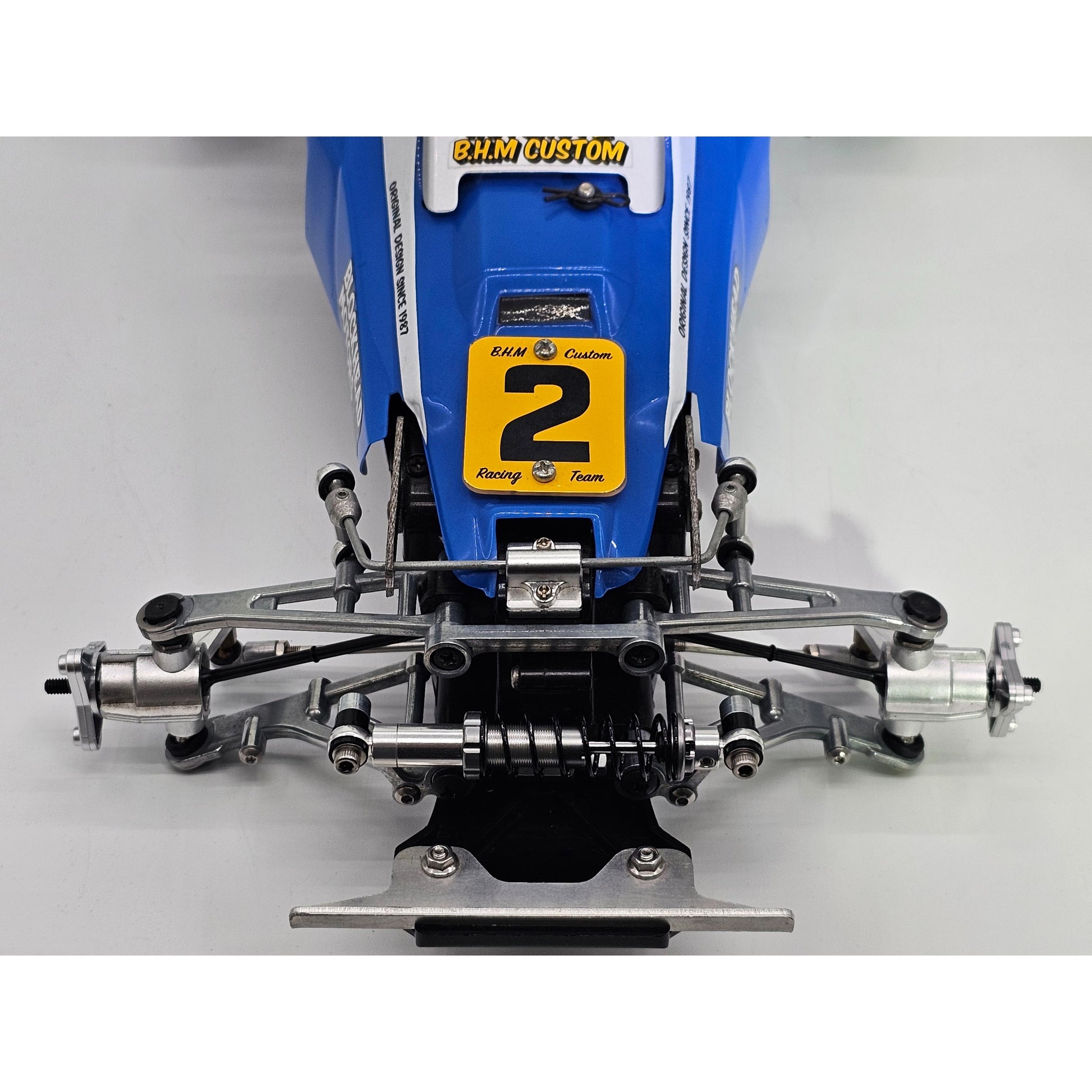

This is the Hot Shot II & Boomerang front single damper set. It can be attached to both Tamiya original suspension arms and RC Channel suspension arms. Features: Shocks with dedicated settings tailored to the target vehicle. Spring preload (vehicle height) is adjustable, and the oil damper specification provides excellent setting performance. Easy to disassemble and assemble for simple maintenance. Newly designed by RC Channel, it ensures a very large stroke amount. High precision and low friction: Features a high-precision CNC machined shock body and low-friction shaft. Low-friction materials are also used for the shaft collar and piston. Product Specifications: Overall length (extended): 84mm Overall length (compressed): 73mm Joint: Uses a durable and long-lasting plastic sleeve joint. Spring specifications for Tamiya genuine plastic arms: Diameter 1.2mm / Length 50mm / 10 turns. RC Channel metal arms spring specifications: Diameter 1.2mm / Length 45mm / 9 turns. Included damper oil: #1000 CPS. Oil seal: Upper end oil seal with airbag (diaphragm). Shock body outer diameter: 9mm Spring outer diameter: 14mm Recommended shock stop tube length (for Tamiya genuine plastic arms): 12mm Recommended shock stop tube length (for RC Channel metal arms): 4mm Country of origin: Taiwan. Set contents: Front shock x1 Plastic sleeve joint x4 [Parts for Tamiya genuine plastic arms] M3 x 20mm hex screw x2 3mm steel washer (for hex screw) x2 [Parts for RC Channel metal kit] M3 x 16mm hex screw x2 Plastic 4mm shock stop tube x2 Spring specifications: Diameter 1.2mm / Length 45mm / 9 turns. Plastic 4mm washer (for shock screw) x2 Compatible vehicles: Hot Shot II, Boomerang, Super Sabre.
